1550nm 1G CATV OEM OLT Series External Optical Transmitter 2*5dB

Product Categories
Sichuan Bihong Electronic Information Technology Co., Ltd.
Contact Now

1550nm 1G CATV OEM OLT Series External Optical Transmitter 2*5dB

  • 1
  • 2

Brand Name : BEHOME

Model Number : BOT1550-2*5

Place of Origin : sichuan

Payment Terms : T/T, L/C

Supply Ability : 100pcs per month

Delivery Time : 1 month if no any stock

Packaging Details : carton

MOQ : Negotiable

Certification : ISO14001 ISO2000 ISO45001

Price : Negotiable

Material : Aluminium Alloy Housing

Color : Black Or Aluminum Original Color

WideBand : 1G

Wavelength : 1540~1563nm

Each Output : 5-10dBm

Dimension : 450×483×44mm

Contact Now

1550nm 1G CATV OEM OLT Series External Optical transmitter 2*5dB



OLT Series External Optical transmitter 2*5dB

OLT 1550 series is 1550nm externally modulated optical transmitter with the best performance and the highest index. It is the first choice for long-distance transmission and large area covered local networks. It is applied to: the optical modulation and optical insertion of large and medium-sized 1550nm optical transmission system; the upgrading and expansion of WDM and its related networks. It is the core equipment of 1550nm network transmission system to for triple-play and FTTx.



Features

  Items Unit Parameters Remarks
Min. Typ. Max.
Optical Wavelength((nm) nm 1540   1563 Compatible with ITU wavelength
Output Port No.   1 2
Each Output(dBm) dBm 5   10 1dBm/step
Laser linewidth MHz 0.35
SMSR dB 45 50
RIN dB/Hz     -160 20~1002MHz
Optical Return Loss dB 50
Fiber Connector   SC/APC FC/APC,LC/APC Optional
RF Bandwidth MHz 47   1002
Input Level dBμV 75 80 85 AGC
MGC ATT dBμV 0   15 In MGC
Unflatness dB -0.75   +0.75 47~1002MHz
Return Loss dB 16     47~1002MHz
Input Impedance Ω   75
RF Connector   F Metric/ Imperial Optional
Link Test Channels

PAL-D/

59CH

 PAL-D/99CH
CNR1 dB ≥53.0 52.0 TX to RX,0dBm input to Node
CNR2 dB ≥51.0 50.0 65K fiber,0dBm input to Node
CTB dB ≥65
CSO dB ≥65
SBS dBm 13   19 Adjustable, Step 0.1dB
General Network Management   SNMP,WEB supported
Power Supply V 90   265 AC
-72   -36 DC
Power Consumption W     50 Dual Power Supply, 1+1back up
Working Temp ℃ -5   +65 Auto case temp control
Storage Temp ℃ -40   +85
Working relative humidity(%) % 5   95
Size mm 450×483×44 W,L,H
Weight Kg 7.4

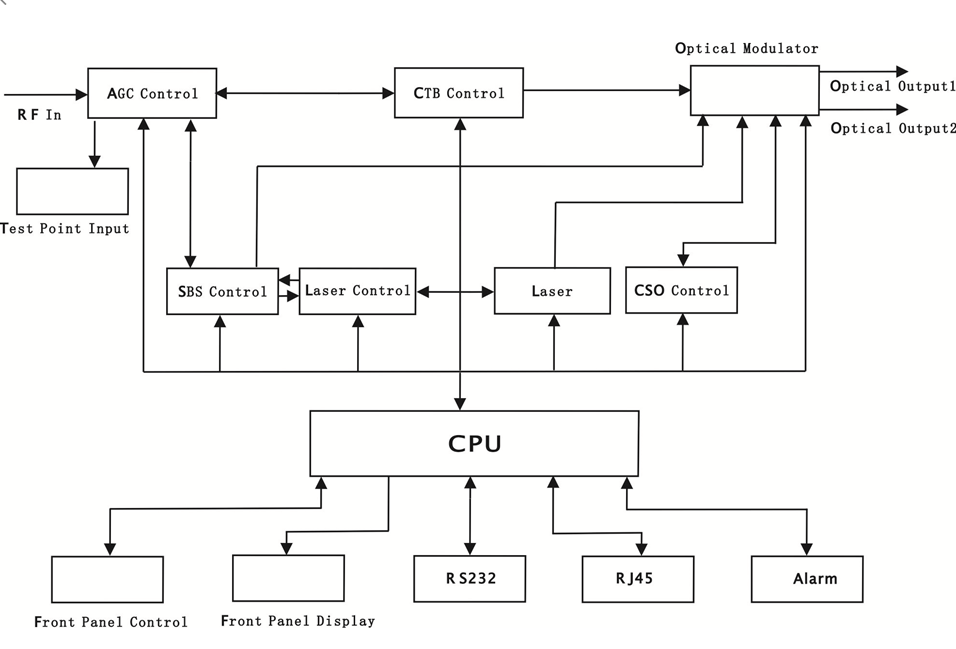

Diagram

1550nm 1G CATV OEM OLT Series External Optical Transmitter 2*5dB
